EA eDIPTFT43-A display declaration. More...

#include <cinoscontainer.h>
#include <xmlparser.h>

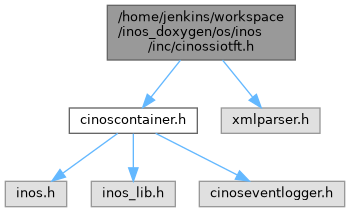

Include dependency graph for cinossiotft.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	STFTEvent

struct	STFTCharMap
	Structure for mapping ASCII special chars to LCD chars. More...

struct	STFTInternalInfo
	Structure for internal display info. More...

struct	STFTHardcopy

struct	SBtnFrameColor
	Define a button's colors. More...

struct	SBtnFrameShape
	Define a button's frame. More...

struct	SBtnFont
	Define a button's font. More...

struct	STouchButton
	All information defining a touch button. More...

struct	STFTFontInfo
	Information about a system font. More...

struct	SComBuffer

struct	SComFifo
	Communication fifo buffer. More...

class	CINOSSioTft

Macros
#define	DF_SIO_TFT_MOD_XDB "xcfg-mod-sio-tft"
	Name of xml definition file for sio tft.

#define	DF_SIOTFT_KEY_NOP 0

#define	DF_SIOTFT_KEY_ENTER 1

#define	DF_SIOTFT_KEY_DELETE 2

#define	DF_SIOTFT_KEY_UP 3

#define	DF_SIOTFT_KEY_DOWN 4

#define	DF_SIOTFT_KEY_LEFT 5

#define	DF_SIOTFT_KEY_RIGHT 6

#define	DF_SIOTFT_KEY_CLEAR 7

#define	DF_SIOTFT_KEY_ESCAPE 8

#define	DF_SIOTFT_KEY_LAYOUT 9

#define	DF_SIOTFT_EVENT_QUEUE_SIZE 16

#define	DF_SIOTFT_NORMAL 0x00000000

#define	DF_SIODIS_STRETCHX 0x00000001

#define	DF_SIODIS_STRETCHY 0x00000002

#define	DF_SIOTFT_STRETCH (DF_SIODIS_STRETCHX\|DF_SIODIS_STRETCHY)

#define	DF_SIODIS_INVERT 0x00000004

#define	DF_SIOTFT_Pix_X 480

#define	DF_SIOTFT_Pix_Y 272

#define	DF_SIOTFT_DC1 0x11

#define	DF_SIOTFT_DC2 0x12

#define	DF_SIOTFT_ESC 0x1B

#define	DF_SIOTFT_ACK 0x06

#define	DF_SIOTFT_NAK 0x15

#define	DF_SIOTFT_CMD_AREA 0xD0
	Special command value for touch areas.

#define	DF_SIOTFT_Col_transparent 0

#define	DF_SIOTFT_Col_black 1

#define	DF_SIOTFT_Col_blue 2

#define	DF_SIOTFT_Col_red 3

#define	DF_SIOTFT_Col_green 4

#define	DF_SIOTFT_Col_magenta 5

#define	DF_SIOTFT_Col_cyan 6

#define	DF_SIOTFT_Col_yellow 7

#define	DF_SIOTFT_Col_white 8

#define	DF_SIOTFT_Col_dark_gray 9

#define	DF_SIOTFT_Col_orange 10

#define	DF_SIOTFT_Col_purple 11

#define	DF_SIOTFT_Col_light_red 12

#define	DF_SIOTFT_Col_dark_cyan 13

#define	DF_SIOTFT_Col_light_green 14

#define	DF_SIOTFT_Col_light_blue 15

#define	DF_SIOTFT_Col_gray 16

#define	DF_SIOTFT_Cursor_OFF 0

#define	DF_SIOTFT_Cursor_ON 1

Enumerations
enum	ETouchInvert { eTIClear =0 , eTISet =1 , eTIToggle =2 }

enum	ETouchReaction { eTRInvert , eTRSummer }

enum	ETextAlignment { eTALeft =0x4C , eTACenter =0x43 , eTARight =0x52 }

enum	EBlockTextAlignment { eBTUpperLeft =1 , eBTUpperCenter =2 , eBTUpperRight =3 , eBTMiddleLeft =4 , eBTMiddleCenter =5 , eBTMiddleRight =6 , eBTLowerLeft =7 , eBTLowerCenter =8 , eBTLowerRight =9 }
	Define text alignment in block text output.

enum	ETftError { eErrNoError =0 , eErrFrameErrorACK , eErrFrameErrorESC , eErrFrameErrorDC1 , eErrFrameErrorDC2 , eErrFrameErrorLen , eErrTimeout , eErrChecksum }
	Errors of tft display functions.

enum	ETftReply { eTftRplAnaTouch = 0x00000001 , eTftRplMatrix = 0x00000002 , eTftRplTouchArea = 0x00000004 , eTftRplProjectName = 0x00000008 , eTftRplInternalInfo = 0x00000010 , eTftRplHardCopy = 0x00000020 }
	Type of replies successfully received from tft display.

Detailed Description

EA eDIPTFT43-A display declaration.

Author: F. Cenedese

Copyright: Copyright © 2016 Indel AG. All rights reserved.; This software is licensed on a non-exclusive basis for use on Indel products only. If the Source Code has been provided by Indel, the software may be modified or further developed, exclusively for the use on Indel's products. For evaluation purposes of the aforementioned development or modification of the software, the software may temporarily be used on third party products. Any further use of this software, its modification or development on non-Indel products is strictly prohibited.

Remarks

project         : INDEL PowerPC
language        : GNU C++
system          : Embedded

Handle display eDIPTFT43-A from Electronic Assembly.

Classes

Macros

Enumerations

Detailed Description
