CINOSxmsHandlerBase Class Reference
#include <inos_1ms.h>

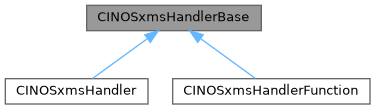

Inheritance diagram for CINOSxmsHandlerBase:
Public Member Functions | |
| CINOSxmsHandlerBase (int32 aInterval, bool aActive=true, bool aSingle=false) | |
| void | Activate () |
| void | Deactivate () |
| long | SetInterval (long aiInterval) |
| long | GetTimer () const |
 Public Member Functions inherited from CINOSBusHookEx | |
| CINOSBusHookEx (uint8 auCoreId, uint8 auCategory, uint8 auCyclenumber, int32 aiOrder, uint32 auCycletime, void *apHandler, void *apObject, uint32 auFlags, uint32 auInterval, uint32 auCount=0) | |
| Create extended bus hook. | |
| virtual | ~CINOSBusHookEx () |
| Destroy extended bus hook. | |
| void | SetIntervalCmd (uint32 auInterval) |
| Set hook interval. More... | |
| uint32 | GetIntervalCmd () |
| Get commanded hook interval. More... | |
| uint32 | GetIntervalAct () const |
| Get actual hook interval counter. More... | |
| virtual void | Action () |
| Base hook handler. | |
| virtual void | Call () |
| Base hook caller. | |
| virtual CINOSBusHook * | Clone () override |
| Clone hook. | |
| Public Member Functions inherited from CINOSBusHook | |
| CINOSBusHook (uint8 auCoreId, uint8 auCategory, uint8 auCyclenumber, int32 aiOrder, uint32 auCycletime, void *apHandler, void *apObject, uint32 auFlags) | |
| Create bus hook. | |
| virtual | ~CINOSBusHook () |
| Destroy bus hook. | |
| uintid | GetId () |
| Get id. | |
| uint32 | Enable () |
| Enable hook. | |
| uint32 | Disable () |
| Disable hook. | |
Additional Inherited Members | |
| Public Types inherited from CINOSBusHook | |
| enum | EFlags { eFlgNone = 0x00000000, eFlgEnabled = 0x00000001, eFlgSingle = 0x00000002, eFlgNoException = 0x00000004, eFlgDeletePending = 0x40000000, eFlgDynamic = 0x80000000 } |
| Hook flags. More... | |
| Protected Member Functions inherited from CINOSBusHookEx | |
| DECLARE_DYNAMIC (CINOSBusHookEx) | |
| Protected Member Functions inherited from CINOSBusHook | |
| DECLARE_DYNAMIC (CINOSBusHook) | |
| Protected Attributes inherited from CINOSBusHookEx | |
| uint32 | m_uInterval |
| uint32 | m_uIntervalAct {} |
| uint32 | m_uCount {} |
| void * | m_pOrgHandler |
| void * | m_pOrgObject |
| Protected Attributes inherited from CINOSBusHook | |
| uint32 | m_uFlags |
| uintid | m_uId |
| uint8 | m_uCoreId |
| uint8 | m_uCategory |
| uint8 | m_uCyclenumber |
| int8 | m_iCycles |
| int32 | m_iOrder |
| uint32 | m_uCycletime |
| void * | m_pHandler |
| void * | m_pObject |
| uint32 | m_uTicks |
Detailed Description
Base implementation for a "1ms handler". One handler is responsible for exactly one callback. A handler can be configured with properties like "callback" call frequency, whether the "callback" shall be called at all or not (enable/disable), whether it's a 'single' time callback which destroys itself after having called the "callback" or a 'multiple' time callback, for which the user code needs to cleanup the handler when not used anymore, etc.
Member Function Documentation
◆ GetTimer()
|
inline |
- Returns
- The actual timer value
The documentation for this class was generated from the following file:
- /home/jenkins/workspace/inos_doxygen/os/inos/inc/inos_1ms.h
