Abstract template base class for all TINOSTaskExCmd variants. More...

#include <cinostaskextmpl.h>

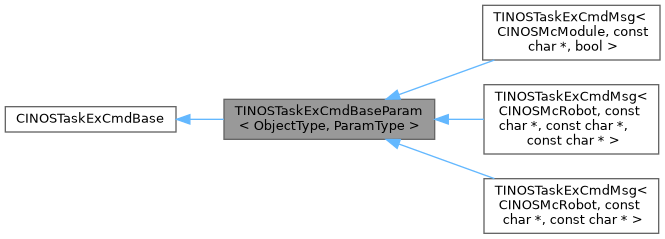

Inheritance diagram for TINOSTaskExCmdBaseParam< ObjectType, ParamType >:

[legend]

Public Member Functions
CMcResult	operator() (ParamType... Params, CINOSSync *apSync=DF_INOS_SYNCHRONOUS)
	Calls this command (dispatched). This function creates and puts a message of this command to the task ex of the command.

virtual uint32	AddCommand (bool abDeleteOnRemove=false) override
	Adds this command to the module it belongs to. And makes it therefore callable. This function also checks if the parameter definitions match the types declared in the template parameters.

virtual uint32	AddCommand (uint64 aChar, uint16 aKeyLevel, bool abRegisterInco=true, bool abDeleteOnRemove=false) override
	Adds this command to the module it belongs to. And makes it therefore callable. This function also checks if the parameter definitions match the types declared in the template parameters.

virtual void	SetDefaults (ParamType... Default)

virtual	~TINOSTaskExCmdBaseParam ()
	Destructor.

Public Member Functions inherited from CINOSTaskExCmdBase
virtual void	SetPreDispatcher (const CINOSTaskExCmdHookBase *apPreDispatchHook)
	Sets the pre dispatch callback which is called before a message is of this command is dispatched.

virtual void	SetOnMsgDone (const CINOSTaskExCmdHookBase *apOnMsgDoneHook)
	Sets the OnMsgDone callback which is called when MsgDone is called on a message of this command.

CINOSTaskExMsg *	CreateMsg (CINOSSync *apSync=DF_INOS_SYNCHRONOUS)
	Create a message of this command. Can be used for manual, customized call.

const char *	GetOption () const
	Returns the option string of this command.

const char *	GetName ()
	Returns the name of this command.

void	SetName (const char *apName)
	Returns the name of this command.

CINOSTaskExMsg &	GetMsg ()
	Returns the message of this command.

void	SetTask (CINOSTaskEx *apTask)

void	AddParam (const char apName, real64 arValue, real64 arMin, real64 arMax, const char apUnit="", uint32 auChar=0, uint32 auFlags=0)
	Adds a real64 param description. This function may only be used if the param description has not be provided in the constructor. The funcion needs to be called in the same order as the template type definition.

void	AddParam (const char apName, const char apValue, const char *apComboData=nullptr, uint32 auFlags=0)
	Adds a string (char*) param description. This function may only be used if the param description has not be provided in the constructor. The funcion needs to be called in the same order as the template type definition.

void	AddParam (const char *apName, bool abValue, uint32 auFlags=0)
	Adds a bool param description. This function may only be used if the param description has not be provided in the constructor. The funcion needs to be called in the same order as the template type definition.

void	SetAllowedStates (uint32 auStateBitmap)
	Sets the states in which this command is allowed to be called.

int	operator< (CINOSTaskExCmdBase &aTaskExMsg)
	binary tree operators

int	operator== (CINOSTaskExCmdBase &aTaskExMsg)

int	operator< (const char *aName)

int	operator== (const char *aName)

virtual	~CINOSTaskExCmdBase ()
	Destructor.

void	Claim ()
	Claims the object of this command. This ensures that in case this command.

void	Release (CINOSTaskExMsg *apMsg=nullptr)
	Releases the object of this command. This ensures that in case this command.

Protected Member Functions
	TINOSTaskExCmdBaseParam (const char apName, CINOSTaskEx apTask, ObjectType apObject, TINOSTaskExValDef< ParamType >... apDefaultParams, uint32 auStateBitmap, const char apOption, uint64 auCharacteristics, uint16 auKeyLevel, bool abRegisterInco)
	Constructor (base constructor is protected, as this class is abstract)

template<typename T >
CINOSTaskExMsgParam *	AddParam (CINOSTaskExMsg *apMsg, T aValue)

CINOSTaskExMsgParam *	AddParam (CINOSTaskExMsg apMsg, const char pValue)

Protected Member Functions inherited from CINOSTaskExCmdBase
virtual void	Dispatch (CINOSTaskExMsg *apMsg)=0
	Dispatches a message if this command. Used by CINOSTaskEx.

virtual void	DispatchTmd (CINOSTaskExMsg *apMsg)=0
	Dispatches a timed message if this command. Used by CINOSTaskEx.

bool	PreDispatch (CINOSTaskExMsg *apMsg)
	Function is called by the module (CINOSTaskEx) before the message of this command is dispatched.

void	OnMsgDone (CINOSTaskExMsg *apMsg, CINOSTaskExDef::ERplId aRplId, tMcAppError aAppError)
	Function is called by the module (CINOSTaskEx) when MsgDone is called on a message of this command.

	CINOSTaskExCmdBase (const char apName, CINOSTaskEx apTask, uint32 auStateBitmap, const char *apOption, uint64 auCharacteristics, uint16 auKeyLevel, bool abRegisterInco)
	Constructor (base constructor is protected, as this class is abstract)

bool	CheckParams (size_t count,...)
	Checks if thie added parameters match the template definition.

virtual void	DeleteCommand ()
	Deletes the object of this command, dispatch if called from.

Protected Attributes
ObjectType *	m_pObject
	Object of this command.

Protected Attributes inherited from CINOSTaskExCmdBase
CINOSTaskEx *	m_pTask
	Task of this command.

tPreDispatchFunction	m_pPreDispatchFunction = nullptr
	Function that is called before messages of this command are dispatched.

tOnMsgDoneFunction	m_pMsgDoneFunction = nullptr
	Function that is called when MsgDone is called on messages of this command.

uint64	m_uCharacteristics = 0
	Characteristics of the INCO registration of this commands.

uint64	m_uIsStructureBitmap = 0
	Bitmap that defines if the parameter corresponding to the bit number is a structure.

uint16	m_uKeyLevel = cKeyLevelMin
	Key level of the INCO registration of this commands.

bool	m_bRegisterInco = true
	Defines if this command is registered to the INCO tree if not.

CINOSTaskExMsg	m_CommandMsg
	Prototype message for this command.

CINOSTaskExMsg *	m_pRegisterMsg = nullptr
	Register message for this command (in the task ex for INCO tree)

uint32	m_uAllowedStates
	Bitmap of states in which this command is allowed to be called.

const char *	m_pOption = nullptr
	Option(s) of the module which are required for this command to be added.

std::atomic_ulong	m_uReferenceCount
	Reference count for dynamically created and added objects. If count is 0 the.

Additional Inherited Members
Public Types inherited from CINOSTaskExCmdBase
typedef bool(CINOSTaskEx::*	tPreDispatchFunction) (CINOSTaskExMsg *apMsg)
	Type of pre-dispatch functions. Functions of this type can be used as a callback in SetPreDispatcher.

typedef void(CINOSTaskEx::*	tOnMsgDoneFunction) (CINOSTaskExMsg *apMsg, CINOSTaskExDef::ERplId aRplId, tMcAppError aAppError)
	Type of OnMsgDone functions. Functions of this type can be used as a callback in SetOnMsgDone.

Detailed Description

template<class ObjectType, typename... ParamType>
class TINOSTaskExCmdBaseParam< ObjectType, ParamType >

Abstract template base class for all TINOSTaskExCmd variants.

Template Parameters

ObjectType	Type of the class this command is added to. Class must be inherited from CINOSTaskEx.
ParamType...	List of types of the parameters of this command.

Member Function Documentation

◆ AddCommand() [1/2]

template<class ObjectType , typename... ParamType>

virtual uint32 TINOSTaskExCmdBaseParam< ObjectType, ParamType >::AddCommand ( bool abDeleteOnRemove = false )

inlineoverridevirtual

Adds this command to the module it belongs to. And makes it therefore callable. This function also checks if the parameter definitions match the types declared in the template parameters.

Reimplemented from CINOSTaskExCmdBase.

◆ AddCommand() [2/2]

template<class ObjectType , typename... ParamType>

virtual uint32 TINOSTaskExCmdBaseParam< ObjectType, ParamType >::AddCommand	(	uint64	aChar,
		uint16	aKeyLevel,
		bool	abRegisterInco = `true`,
		bool	abDeleteOnRemove = `false`
	)

inlineoverridevirtual

Adds this command to the module it belongs to. And makes it therefore callable. This function also checks if the parameter definitions match the types declared in the template parameters.

Parameters

Characteristics	uint32 characteristics of the INCO item of the command.
aKeyLevel	uint16 key level of the INCO item of the parameter.
abRegisterInco	bool defines if the command should be registered to the inco tree.

Reimplemented from CINOSTaskExCmdBase.

◆ operator()()

template<class ObjectType , typename... ParamType>

CMcResult TINOSTaskExCmdBaseParam< ObjectType, ParamType >::operator()	(	ParamType...	Params,
		CINOSSync *	apSync = `DF_INOS_SYNCHRONOUS`
	)

inline

Calls this command (dispatched). This function creates and puts a message of this command to the task ex of the command.

Parameters

Params...	The parameters of this command as defined in the template definition.
apSync	CINOSSync* sync type or sync object

The documentation for this class was generated from the following file:

/home/jenkins/workspace/inos_doxygen/os/inos/inc/cinostaskextmpl.h
